N4K Pay-as-you-Go

Overview

Nirmata Enterprise for Kyverno (N4K) is an enterprise distribution of Kyverno available via the AWS Marketplace. This add-on provides 0-CVEs, secure defaults, and operational enhancements - deployable directly to your Amazon EKS clusters.

Prerequisites

• Active AWS account and Amazon EKS cluster (v1.23+)
• AWS CLI, kubectl, and eksctl installed and configured
• IAM permissions to create roles and service accounts

Installation via AWS Console

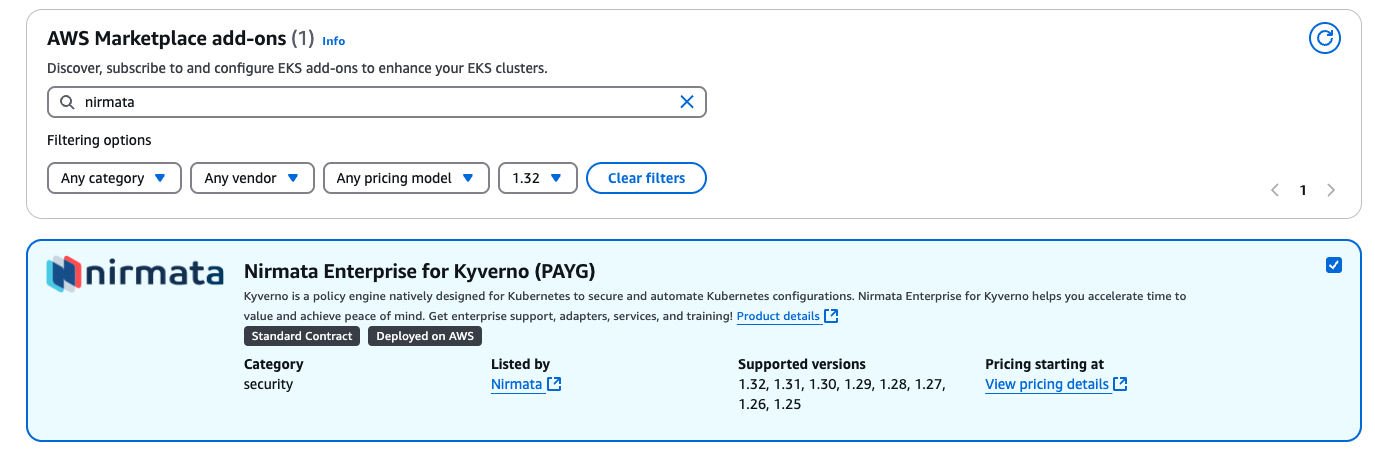

Select N4K Add-on

1. Go to Clusters>Add-ons tab and click on Get more add-ons.
2. Scroll down to AWS Marketplace add-ons
3. In the search bar, type nirmata
4. Select Nirmata Enterprise for Kyverno (PAYG).
5. Click on Next.

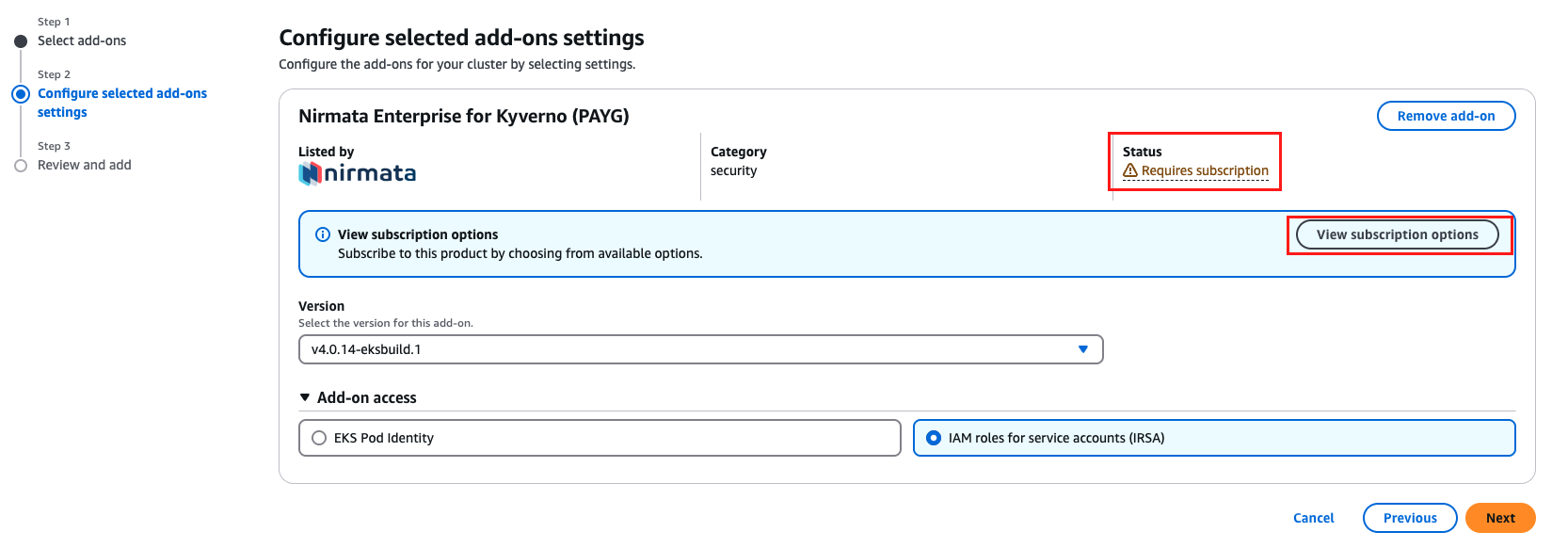

Configure N4K Add-on

1. In the Configure step, if not already subscribed to N4K from your cloud account, under the Status field, you will see a Requires subscription message.

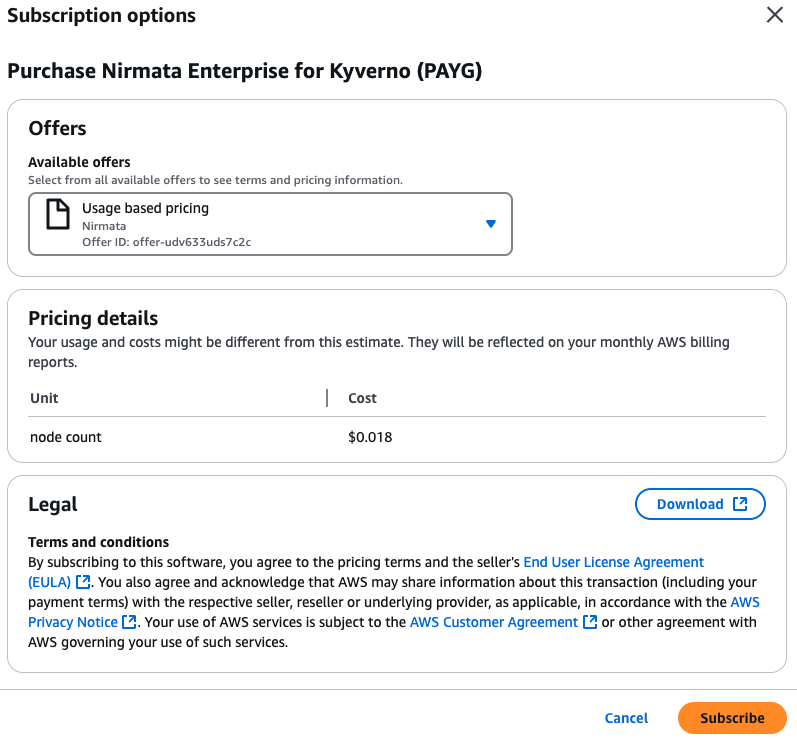

2. Click on View Subscription options and follow the instructions for subscription.

1. The add-on requires access to AWS Metering APIs. Select IAM roles for service accounts (IRSA).

NOTE: You must use the IRSA option and not Pod Identity as there will be issues in hitting the metering APIs resulting in errors in the Kyverno controller pods.

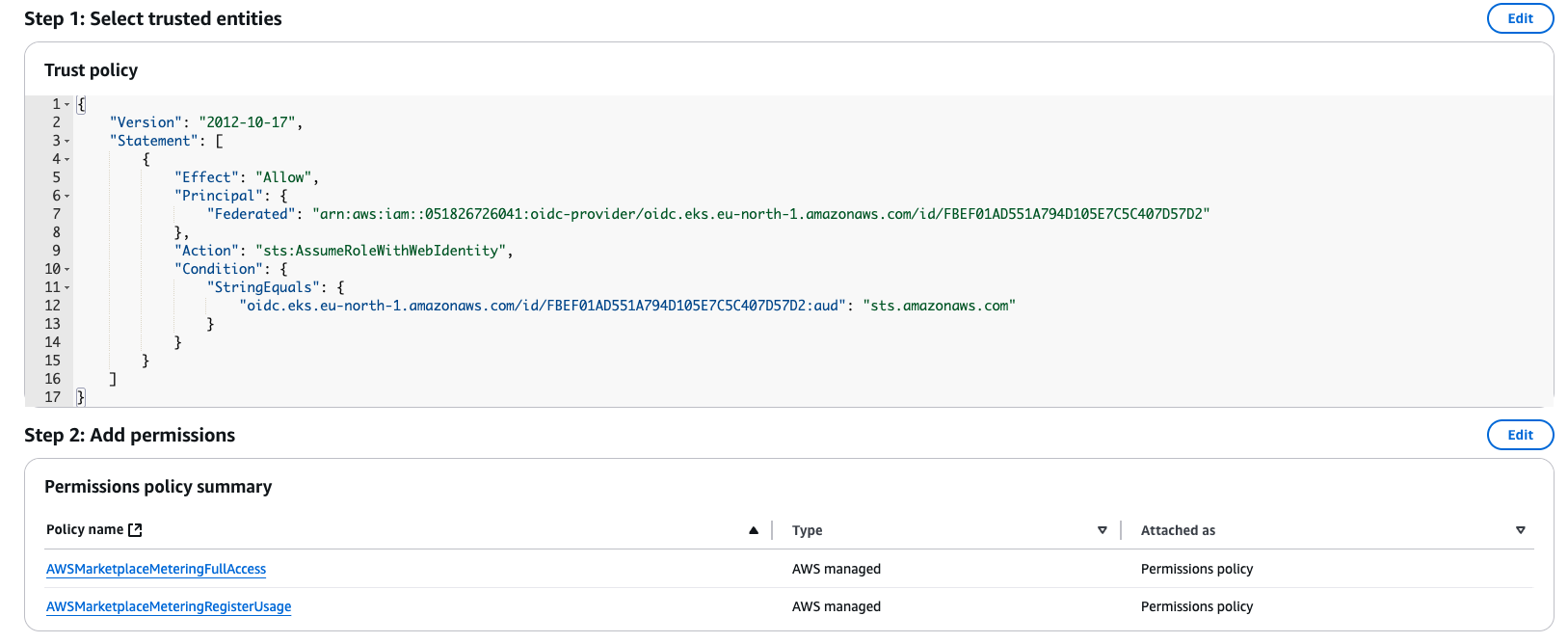

1. Create the IAM Role with the following trust relationship policy and permissions.
2. Go to IAM>Roles>Create role.

Select Custom trust policy:

NOTE: Refer to the cluster’s OpenID Connect provider URL to add in the trust relationship.

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
                "Federated": "arn:aws:iam::<ACCOUNT_NUMBER>:oidc-provider/<oidc.eks.<REGION>.amazonaws.com/id/XXXX>"
            },
            "Action": "sts:AssumeRoleWithWebIdentity",
            "Condition": {
                "StringEquals": {
                    "oidc.eks.<REGION>.amazonaws.com/id/XXXX:aud": "sts.amazonaws.com"
                }
            }
        }
    ]
}

Add Permissions:

• AWSMarketplaceMeteringFullAccess
• AWSMarketplaceMeteringRegisterUsage

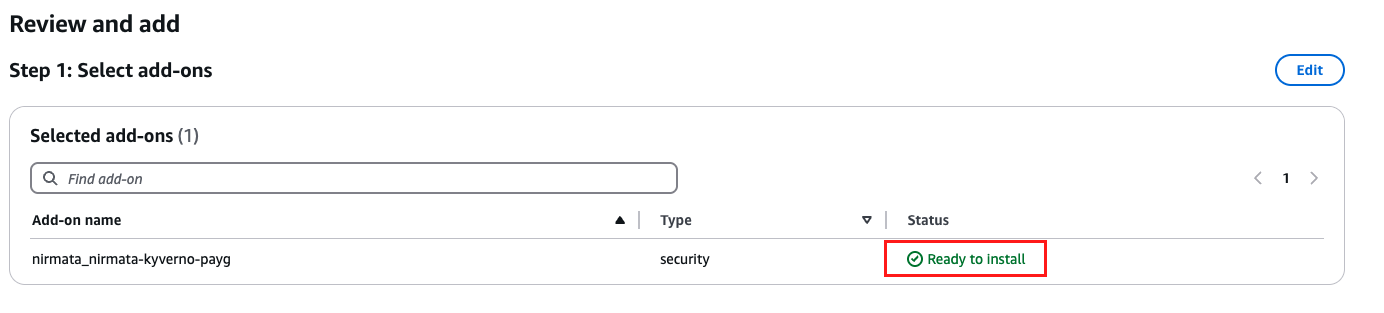

Review and Add

1. Review the add-on configuration. The Status should be Ready to Install.
2. Click on Create.

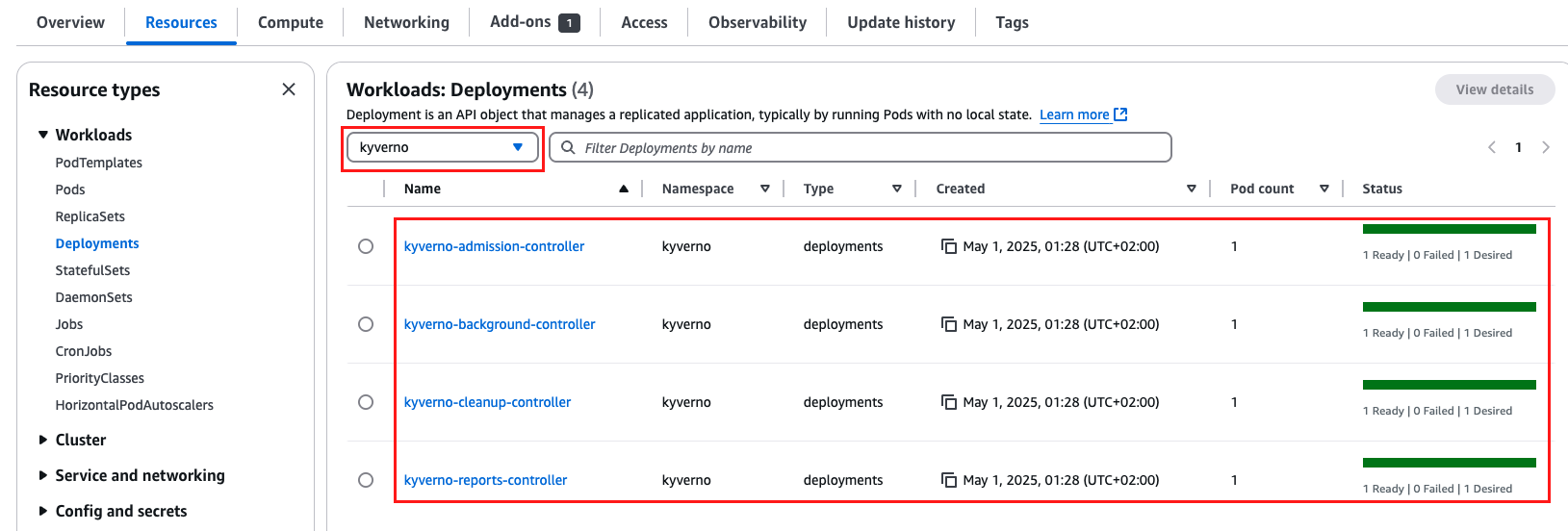

Verify Installation

1. Go to Cluster>Resources>Workloads>Deployments.
2. Select kyverno namespace from the dropdown.
3. Verify that all four deployments are up and running.

Installation via CLI

Subscribe to N4K in AWS Marketplace

Note: This step needs to be done only once per AWS account.

1. Visit the N4K listing.
2. Click Continue to Subscribe.
3. Accept the terms to enable deployment into EKS.

Set Variables

export CLUSTER_NAME=<your-cluster-name>
export CLUSTER_REGION=<your-cluster-region>

Associate IAM OIDC Provider

eksctl utils associate-iam-oidc-provider \
  --cluster $CLUSTER_NAME \
  --region $CLUSTER_REGION \
  --approve

This step allows Amazon EKS to map IAM roles to Kubernetes service accounts securely.

Create IAM Service Account for Marketplace Metering

To enable AWS Marketplace metering for usage-based billing, N4K requires permissions to report usage. These are provided via the managed policies:

• AWSMarketplaceMeteringRegisterUsage
• AWSMarketplaceMeteringFullAccess

Create the IAM service account:

eksctl create iamserviceaccount \
  --name kyverno \
  --namespace kyverno \
  --cluster $CLUSTER_NAME \
  --region $CLUSTER_REGION \
  --attach-policy-arn arn:aws:iam::aws:policy/AWSMarketplaceMeteringRegisterUsage \
  --attach-policy-arn arn:aws:iam::aws:policy/AWSMarketplaceMeteringFullAccess \
  --approve \
  --override-existing-serviceaccounts \
  --role-only \
  --role-name N4K-PayG-Role

This step ensures that N4K can register and report usage data required for AWS billing. No other permissions are required.

Install N4K Add-on in the Cluster

To list available versions:

aws eks describe-addon-versions --addon-name nirmata_nirmata-kyverno-payg --query 'addons[].addonVersions[].addonVersion' --output text

export SERVICE_ACCOUNT_ROLE_ARN=$(aws iam get-role --role-name N4K-PayG-Role --output json | jq -r '.Role.Arn')

aws eks create-addon \
  --cluster-name $CLUSTER_NAME \
  --region $CLUSTER_REGION \
  --addon-name nirmata_nirmata-kyverno-payg \
  --addon-version <latest-version> \
  --service-account-role-arn $SERVICE_ACCOUNT_ROLE_ARN \
  --resolve-conflicts OVERWRITE

Verify Deployment

kubectl get pods -n kyverno

Upgrading the Add-on

To upgrade N4K:

aws eks update-addon \
  --cluster-name $CLUSTER_NAME \
  --region $CLUSTER_REGION \
  --addon-name nirmata_nirmata-kyverno-payg \
  --addon-version <new-version>

Uninstalling N4K

To remove the N4K add-on and IAM service account:

aws eks delete-addon \
  --cluster-name $CLUSTER_NAME \
  --region $CLUSTER_REGION \
  --addon-name nirmata_nirmata-kyverno-payg

eksctl delete iamserviceaccount \
  --name kyverno \
  --namespace kyverno \
  --cluster $CLUSTER_NAME \
  --region $CLUSTER_REGION

Support

For assistance with setup or usage, contact Nirmata Support.
